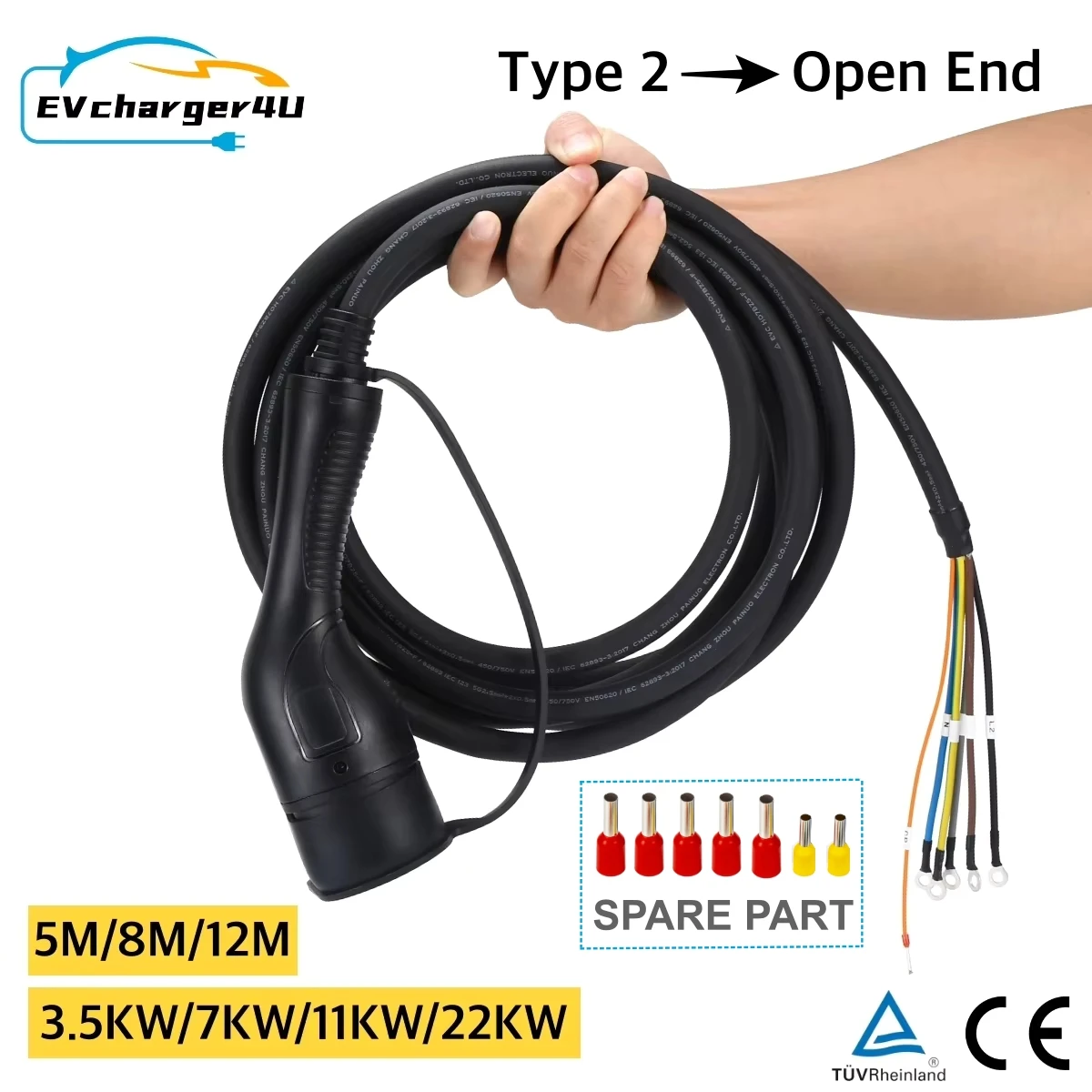

Câble Type 2 pour recharge VE, 16/32A, jusqu'à 22 kW

Câble Type 2 pour recharge VE

16/32A, jusqu'à 22 kW

4.9 · 83 commandes déjà effectuées

277,28 $

Choix

Description

Model No. and Cable specification

Mechanical Testing

Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Features

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance

Caractéristiques

  • Actuel : 16A/32A
  • Indice IP : IP55
  • Longueur : 5M/8M/12M/15M
  • Matériau : TPU
  • Nom de marque : Arvin
  • Poids : 1.9KG/3KG/3.5KG/4.5KG
  • Puissance (W) : 3.5KW/7KW/11KW/22KW
  • Température de fonctionnement : -30 to 50 degree
  • Tension : 250V/480V
  • Type de prise : Type 2
  • V1-16S-V : 3x2.5mm2+2x0.5mm2 (16A/1phase, 250V)
  • V1-32S-V : 3x6.0mm2+2x0.5mm2 (32A/1phase, 250V)
  • V1-16T-V : 5x2.5mm2+2x0.5mm2 (16A/3phase, 480V)
  • V1-32T-V : 5x6.0mm2+2x0.5mm2 (32A/3phase, 480V)
  • Electric Performance :
  • Protection rank : IP55
  • Fire retardant level : 94 V-0
  • Rated Current : 16A / 32A
  • Rated voltage : 250V / 480V
  • Insulation resistance : > 1000M ohm (DC 500V)
  • Terminal temperature rise : <50K
  • Withstand voltage : 2000V
  • Contact resistance : 0.5m ohm Max
  • Coupled insertion force : >45N <80N
  • Operating temperature : -30C to 50C
  • Mechanical life : no load plug in / pull out > 10000 times
  • Impact of external force : qualify 1m drop or 2 Ton vehicle run over
  • Cable : black with TPU jacket. Other color optional by customizing
  • Product conforms to IEC61851-1 : 2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
