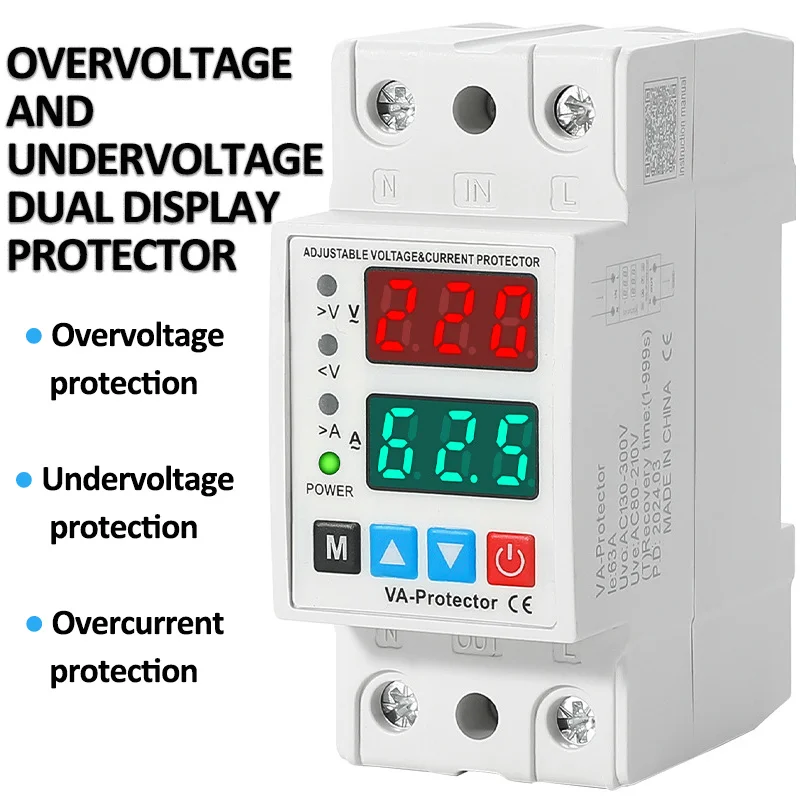

Relais de protection multifonction Din Rail 230V 40A/63A – Surcharge, surtension et sous-tension

Autres

Relais de protection multifonction Din Rail 230V 40A/63A – Surcharge

surtension et sous-tension

Aucune évaluation

45,10 $

Choix

Description

40A/63A Din Rail 230V Adjustable Over Voltage and Under Voltage Protective Device Protector Relay Limit Over Current Protection

• Dual Display :The product features two displays that show the voltage and current levels, making it easy to monitor the circuit's health.

• Adjustable :The device can be adjusted to protect against overvoltage, undervoltage, and other issues, ensuring that your circuit is safe and reliable.

• Protective Device :This product is designed to protect your circuit from damage caused by power fluctuations, ensuring that your equipment stays safe and functional.

• Relay :The relay feature of this product allows you to control the flow of power to your circuit, making it easy to troubleshoot and fix any issues.

Overvoltage protection

Undervoltage protection

Overcurrent protection

Continuous overcurrent counting

Wide voltage: overvoltage of 130-300V, undervoltage of 80-210V, always in protection mode when not set properly, fault light on

Fast protection for power failure: Abnormal ignition, power failure, and other protective device actions in the front-end power grid

Manual/Automatic Recovery: After manually protecting the output, it must be manually turned on.

When the protection function is turned off, the relay remains in its original state without any further action, but the switch button is still valid

Multi mode display: Switching between voltage, current, frequency, visible power, etc. according to the mode

Energy saving mode: When the protector is not active, reduce the brightness of the digital tube to save energy

Embedded RTOS: improves system performance and stability, with high maintainability

AC0.1-40A, 1% calibratable, higher accuracy

AC0.1-63A, 1% calibratable, higher accuracy

Table Algorithm: Root Mean Square/RMS, which should be used in the urban power grid

Caractéristiques

  • Choice : yes
  • Does it include a Battery? : No
  • Does it include wireless functionality? : No
  • EU LVD Voltage : High voltage: Above 50Vac or 75Vdc
  • Rated Voltage : 220V
  • Type : Mini,Circuit breaker
  • Descriptions :
  • Function :
  • Set lock : to prevent accidental modification of parameters
  • DC mode : When DC is used, the current/power is invalid
  • Product Parameters :
  • 1.Model number :
  • 2.Power supply : 230VAC 50/60Hz
  • 3.Max.Loading power : 1~40A Adjustable(default:40A)
  • 1~63A Adjustable(default : 63A)
  • Overvoltage default : 270V, adjustable: 130-300V
  • Undervoltage default : 170V, adjustable: 80-210V
  • Overcurrent default :
  • 40A, adjustable range : 1-40A
  • 63A, adjustable range : 1-63A
  • Effective voltage range : AC80-300V, 1% calibratable, higher accuracy
  • Effective current range :
  • Frequency range : 40-70Hz, 1% calibratable, higher accuracy
  • Screen refresh rate : >1000Hz
  • Table update : 0.1-1.05, 1% screen value update
  • Overvoltage and undervoltage return difference : 5V, fixed 5V return difference
  • Timer range : 1-999S
  • Action time : 0.1-10.0 seconds
  • DC effective range : DC80-300V
